SD2143ET-12
12-bit, 80MHz, Dual Channel ADC
Overview & Features

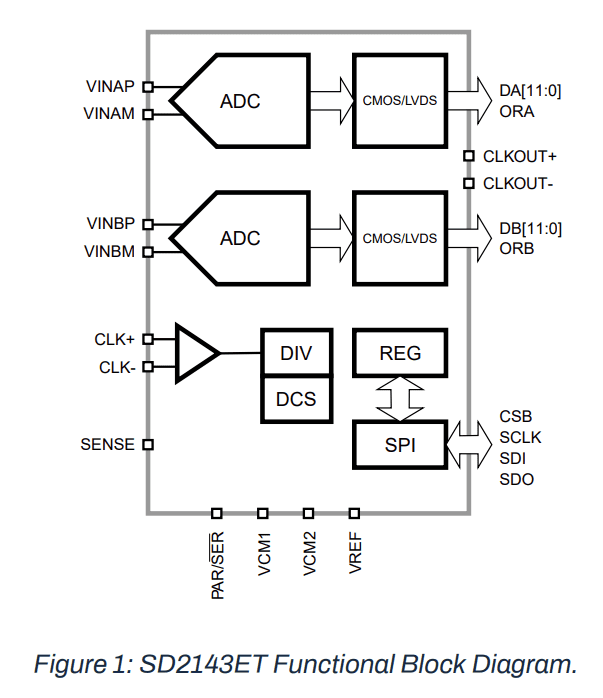

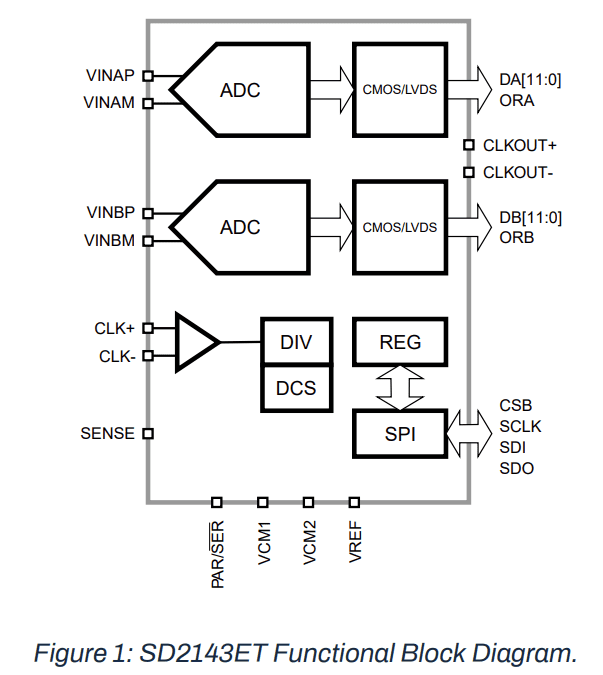

The SD2143ET is a dual-channel, 12-bit, analog-to-digital converter (ADC) supporting sampling rates up to 80MSps. The SD2143ET supports an extended temperature range of -55°C to 125°C. The device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD2143ET can be set to operate using either CMOS or LVDS output interface. Programming for configuration and control is accomplished using a 4-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in offset binary, twos complement format, or gray code.
Features
• Extended temperature range (-55°C to 125°C)
• SNR: 70.6dBFS at f
• SFDR: 87.1dBc at f
• -147.1dBFS/Hz input-noise at f
• 1.8V nominal input
• Typical power consumption: 340mW at 80MSps
• Integer 1-to-8 input clock divider (640MHz maximum input rate)
• Sample rates of up to 80MSps
• 1.8V analog supply voltage
• LVDS (ANSI-644 levels) outputs
• Internal ADC voltage reference
• ADC clock duty cycle correction
• Serial port control
• Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 12-bit | Speed (Msps) | 80 |
| Number of Channels | 2 | SFDR (dBc)@70.2MHz | 87.1 |
| SNR (dBFS)@70.2MHz | 70.6 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | LTC2143-12 | $ | $ | 64 pins (9x9 package) |
