SD9609-65
10-bit, 65MHz, Single Channel ADC
Overview & Features

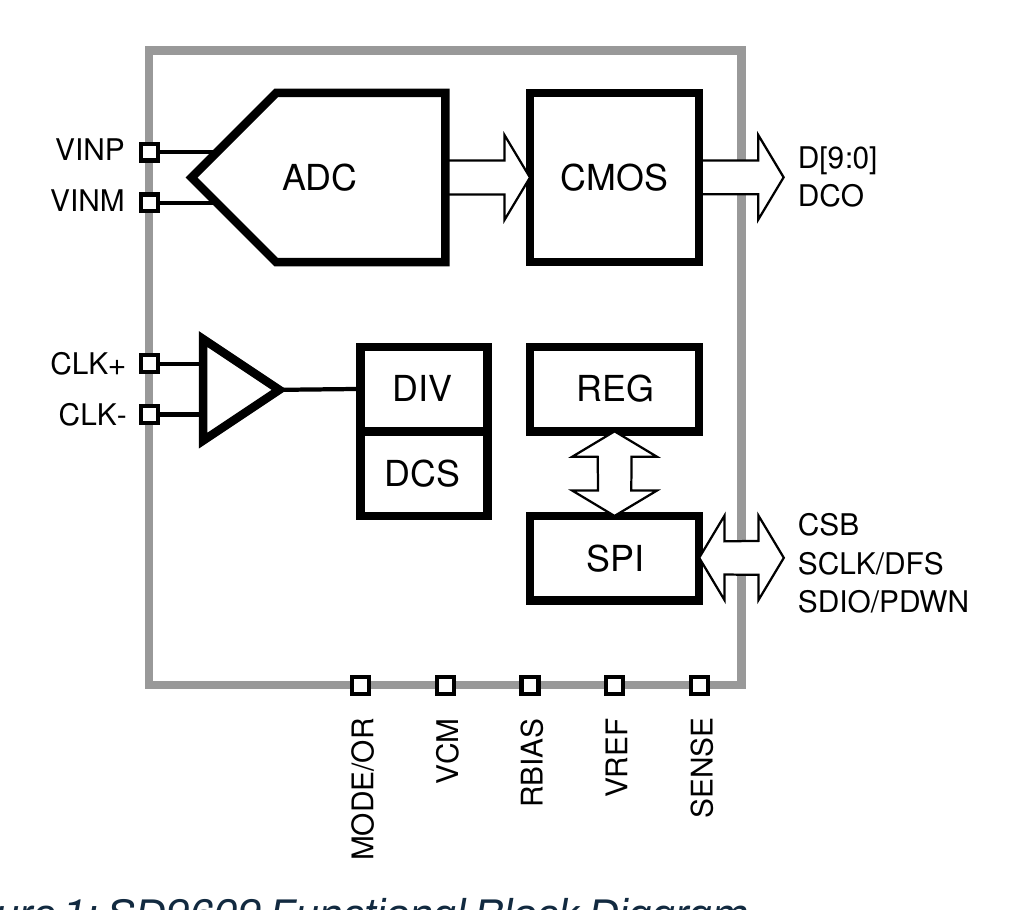

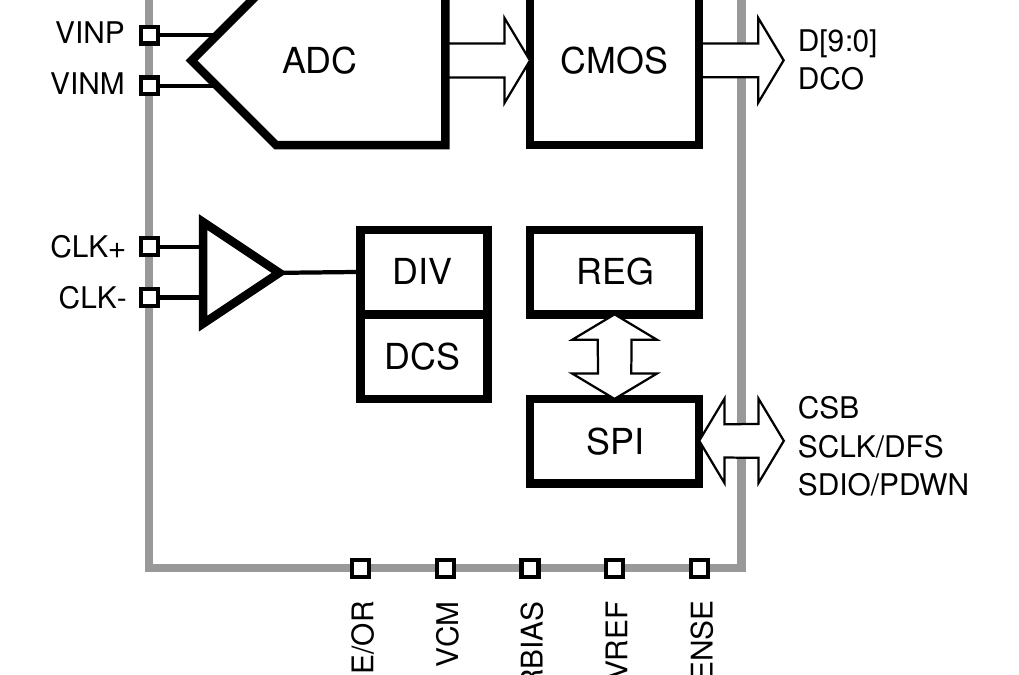

The SD9609 is a single-channel, 10-bit, analog-to-digital converter (ADC) supporting sampling rates up to 65MSps. The device uses a multistage pipeline architecture to achieve high signal-to-noise ratio (SNR) and linearity, over wide input signal bandwidth. The SD9609 uses a CMOS output interface to transfer the data out. Programming for configuration and control is accomplished using a 3-wire SPI-compatible serial bus. The digital output data can be programmed to be delivered in offset binary, twos complement format, or gray code.
Features
* SNR: 61.5dBFS at fIN = 30.2MHz and fS = 65MSps
* SFDR: 75.0dBc at fIN = 30.2MHz and fS = 65MSps
* -137.1dBFS/Hz input-noise at fIN = 30.2MHz and fS = 65MSps
* 2.0V nominal input
* Typical power consumption: 138mW at 65MSps
* Integer 1-to-8 input clock divider (520MHz maximum input rate)
* Sample rates of up to 65MSps
* 1.8V analog supply voltage
* Up to 3.3V digital I/O supply voltage
* Internal ADC voltage reference
* ADC clock duty cycle correction
* Serial port control
* Energy saving power-down modes
Specification
| Product Specifications | |||
|---|---|---|---|
| Resolution | 10-bit | Speed (Msps) | 65 |
| Number of Channels | 1 | SFDR (dBc)@70.2MHz | 75 |
| SNR (dBFS)@70.2MHz | 61.5 | ||
| Drop-in Replacement | Replacement Part # | Plural Price ($) | Replacement Part Price | Package |
|---|---|---|---|---|
| Yes | AD9609-65 | $3.86 | $5.52 | 32 pins (5x5 package) |
